ANCHOR WARP ROPE

Diamond Networks has a variety of ropes suitable for use as anchor warp. Nylon is known to be the correct type of rope for such an application but there are other alternatives. Different rope types/constructions together with their relevant diameter will also dictate your selection.

*Various winches will have proprietary rope recommendations so please consider this before rope replacement - specialist ropes can be accommodated.

Anchor Warp Rope Suppliers Western Australia

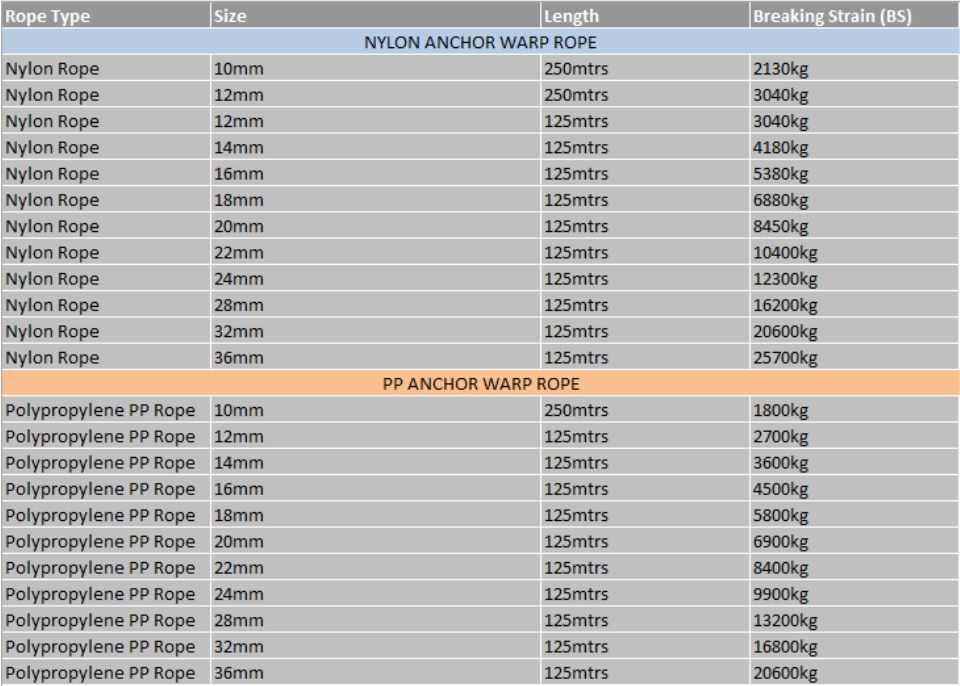

Rope Type	Size	Length	Breaking Strain (BS)
Nylon Rope	10mm	250mtrs	2130kg
Nylon Rope	12mm	250mtrs	3040kg
Nylon Rope	12mm	125mtrs	3040kg
Nylon Rope	14mm	125mtrs	4180kg
Nylon Rope	16mm	125mtrs	5380kg
Nylon Rope	18mm	125mtrs	6880kg
Nylon Rope	20mm	125mtrs	8450kg
Nylon Rope	22mm	125mtrs	10400kg
Nylon Rope	24mm	125mtrs	12300kg
Nylon Rope	28mm	125mtrs	16200kg
Nylon Rope	32mm	125mtrs	20600kg
Nylon Rope	36mm	125mtrs	25700kg

Polypropylene PP Rope	10mm	250mtrs	1800kg
Polypropylene PP Rope	12mm	125mtrs	2700kg
Polypropylene PP Rope	14mm	125mtrs	3600kg
Polypropylene PP Rope	16mm	125mtrs	4500kg
Polypropylene PP Rope	18mm	125mtrs	5800kg
Polypropylene PP Rope	20mm	125mtrs	6900kg
Polypropylene PP Rope	22mm	125mtrs	8400kg
Polypropylene PP Rope	24mm	125mtrs	9900kg
Polypropylene PP Rope	28mm	125mtrs	13200kg
Polypropylene PP Rope	32mm	125mtrs	16800kg
Polypropylene PP Rope	36mm	125mtrs	20600kg
